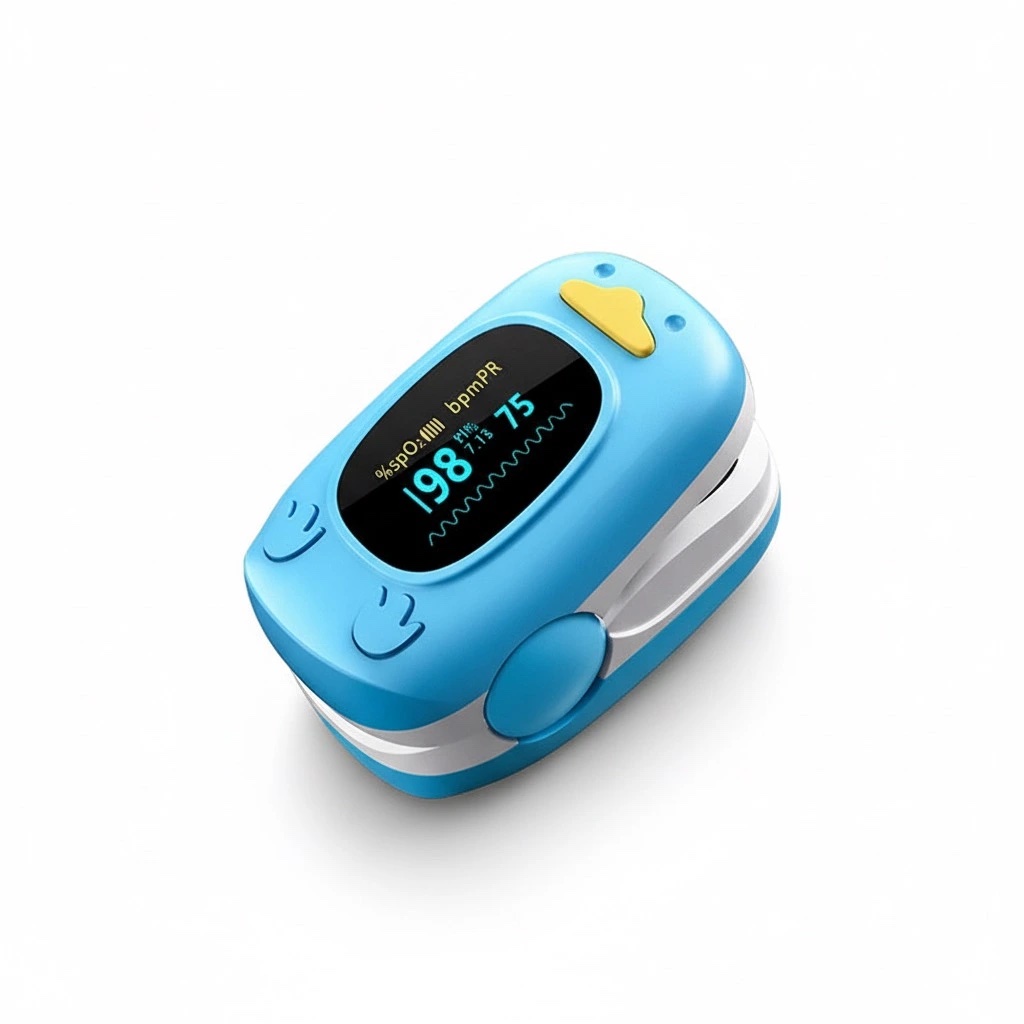

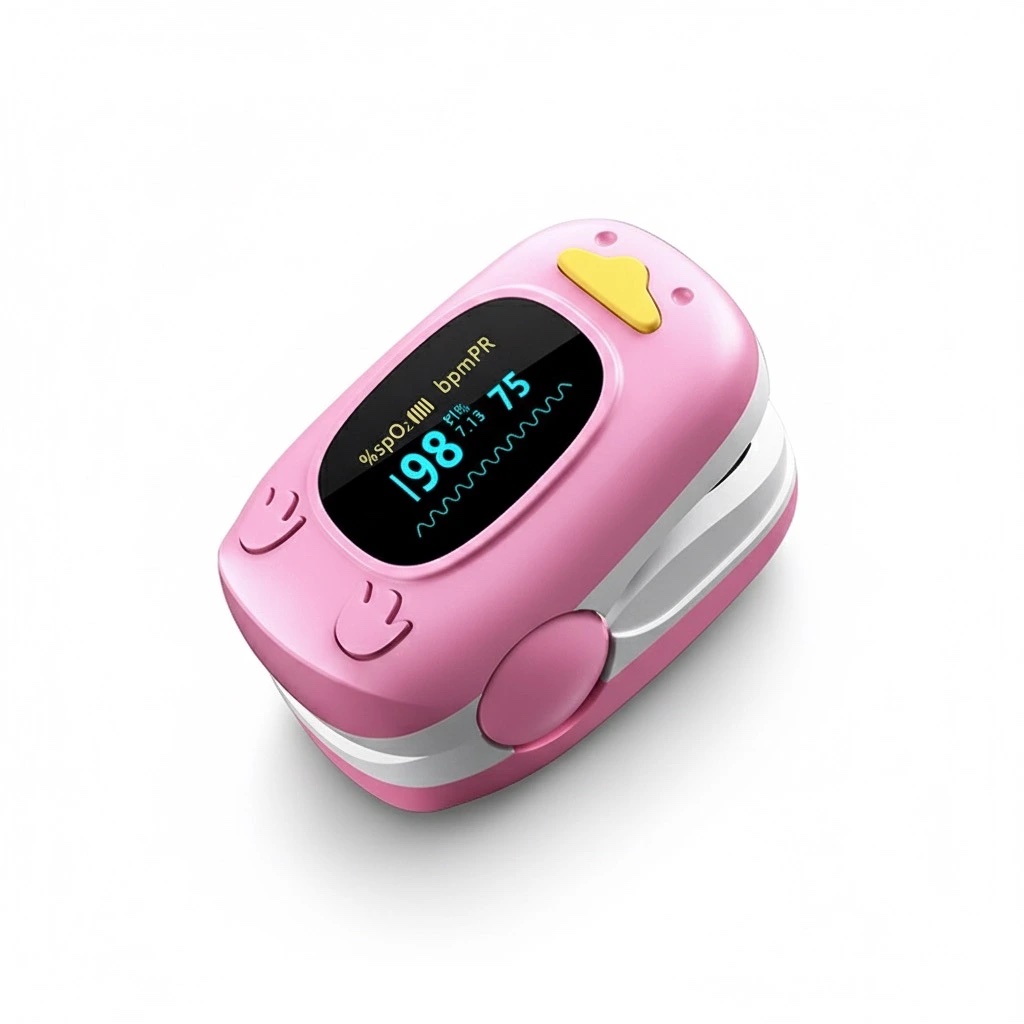

Digital Finger Pulse Oximeter

Details

The pulse oximeter is a medical device used to estimate the percentage of hemoglobin in the blood that is saturated with oxygen—the SpO₂ reading. It also accurately measures the pulse rate. It is particularly important for monitoring individuals with chronic heart and lung conditions, such as asthma, Chronic Obstructive Pulmonary Disease (COPD), or those recovering from acute respiratory illnesses. For users in Tanzania, where access to continuous hospital monitoring might be limited, a reliable home oximeter provides an essential early warning system for respiratory distress.

Available Product Formulations

The most common and affordable formulation is the Digital Finger Pulse Oximeter. Key components typically include:

• Main Unit: The clip-on device with the sensor, light source, and display screen.
• LED Display: Shows the SpO₂ (Oxygen Saturation) and PR (Pulse Rate) values.
• Batteries: Usually powered by standard AAA batteries.
• Lanyard/Case: For portability and protection.

Uses

The main uses of a Pulse Oximeter are:

• Monitoring SpO₂ levels during exercise or at high altitudes.
• Tracking changes in oxygen saturation for patients with respiratory diseases.
• Assessing pulse rate during recovery or in case of cardiovascular symptoms.
• Providing objective data on respiratory function during periods of sleep or illness.

How to Use (Procedure)

Provide clear usage instructions:

• Preparation: Ensure the finger is clean, dry, and free of dark nail polish or artificial nails, which can interfere with the sensor. The hand should be warm and resting below heart level for accurate results.
• Application: Insert one finger (index or middle finger is preferred) into the chamber of the oximeter until the tip touches the stopper. Press the power button. [attachment_0](attachment)
• Reading: Remain still and wait a few seconds for the device to display stable, continuous readings.
• Interpretation: Normal SpO₂ readings are typically 95% and above. Consult a doctor immediately if readings are consistently below 92%.

Side Effects

Pulse oximeters are extremely safe with no systemic side effects. The only localized effect might be mild skin sensitivity or discomfort if the device is worn too tightly or for an extended period. To prevent poor circulation or skin irritation, do not leave the device clipped to the same finger for more than a few minutes at a time.

Interactions (Interference)

The accuracy of the pulse oximeter can be interfered with by several factors:

• Nail Products: Dark nail polish, especially black or dark blue, significantly absorbs light and can cause falsely low SpO₂ readings.
• Movement: Excessive patient movement (shivering or tremor) during measurement will lead to unstable and unreliable readings.
• Lighting: Very bright ambient light (e.g., direct sunlight) shining directly on the sensor can interfere with the light detection process.
• Poor Circulation: Cold hands or hypotension (low blood pressure) can severely limit peripheral blood flow, causing inaccurate or unreadable results.

Warnings

Key safety warnings to note:

• Not a Substitute for Diagnosis: The oximeter provides data but is not a diagnostic tool. Always consult a medical professional for interpreting results, especially if readings are low or symptoms are present.
• Low Readings: If the SpO₂ is consistently below 92%, seek immediate medical attention as this indicates potential hypoxemia (low blood oxygen).
• Keep Dry: Avoid exposing the device to water or excessive moisture, as this can damage the electronic components and sensors.

A Summary Table of Important Information

How a Pulse Oximeter Works

A pulse oximeter works based on the principle of spectrophotometry and the distinctive light absorption properties of different blood types. It uses two small light-emitting diodes (LEDs): one red light and one infrared light. These two wavelengths of light shine through the fingertip. Hemoglobin carrying oxygen (oxyhemoglobin) absorbs more infrared light, while hemoglobin without oxygen (deoxyhemoglobin) absorbs more red light. The sensor on the other side of the finger measures the amount of each light type that passes through. By calculating the ratio of light absorption, the oximeter accurately determines the percentage of blood that is saturated with oxygen (SpO₂). It also detects the pulsatile flow of blood to calculate the pulse rate.
